ACS715ELCTR-30A-T - Linear Current Sensor, Hall Effect, 30A Sensing Current,
134,01 TL
*12,48 TL den başlayan taksitlerle!
Kategori
Stok Kodu
ICD GEN 00012
Adet İskontoları
100 Adet Üzeri İçin Teklif alın
Stok :
2200
USD Birim Fiyat:
3.25 USD + KDV

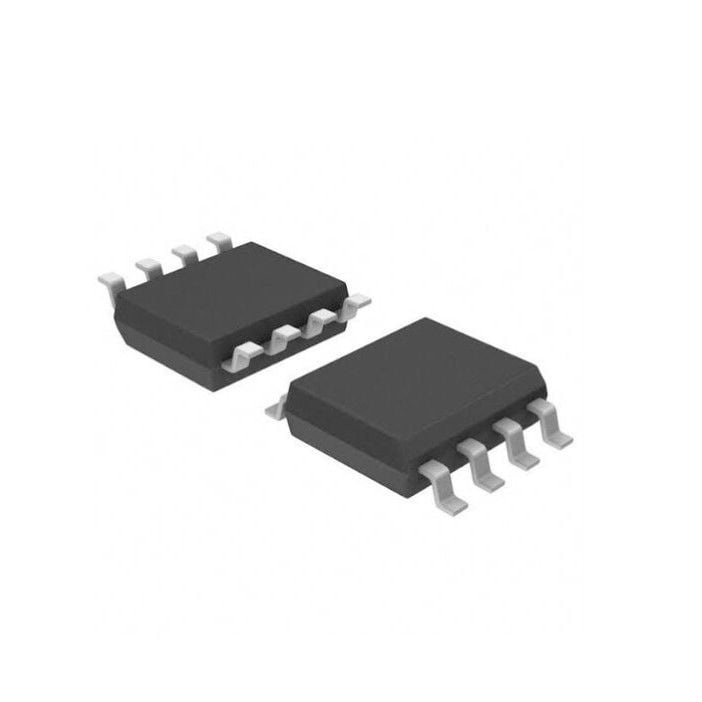

The ACS712ELCTR-30A-T is a fully integrated, hall effect based linear current sensor IC in 8 pin SOIC package. It provides economical and precise solutions. The device package allows for easy implementation by the customer. The device consists of a precise, low-offset, linear hall sensor circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field which is sensed by the integrated Hall IC and converted into a proportional voltage. Device accuracy is optimized through the close proximity of the magnetic signal to the Hall transducer. A precise, proportional voltage is provided by the low-offset, chopper-stabilized Becomes Hall IC which is programmed for accuracy after packaging.
Bu ürüne ilk yorumu siz yapın!
Datasheet
Low-noise analog signal path
▪ Device bandwidth is set via the FILTER pin
▪ 5 μs output rise time in response to step input current
▪ 80 kHz bandwidth
▪ Total output error 1.5% typical at TA = 25°C
▪ Small footprint, low-profile SOIC8 package
▪ 1.2 mΩ internal conductor resistance
▪ 2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8
▪ 5.0 V, single supply operation
▪ 133 to 185 mV/A output sensitivity
▪ Output voltage proportional to DC currents
▪ Factory-trimmed for accuracy
▪ Extremely stable output offset voltage
▪ Nearly zero magnetic hysteresis
▪ Ratiometric output from supply voltage ▪ Operating temperature range, –40°C to 150°C
Low-noise analog signal path
▪ Device bandwidth is set via the FILTER pin
▪ 5 μs output rise time in response to step input current
▪ 80 kHz bandwidth
▪ Total output error 1.5% typical at TA = 25°C
▪ Small footprint, low-profile SOIC8 package
▪ 1.2 mΩ internal conductor resistance
▪ 2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8
▪ 5.0 V, single supply operation
▪ 133 to 185 mV/A output sensitivity
▪ Output voltage proportional to DC currents
▪ Factory-trimmed for accuracy
▪ Extremely stable output offset voltage
▪ Nearly zero magnetic hysteresis
▪ Ratiometric output from supply voltage ▪ Operating temperature range, –40°C to 150°C
