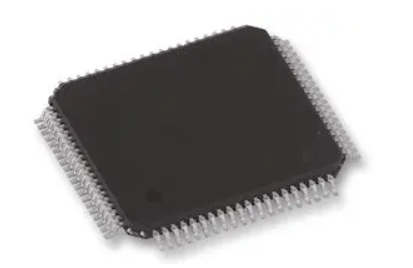

PIC18F87K22-I/PT - SMD TQFP/80 MICROCHIP MCU
YENİ

PIC18F87K22-I/PT - SMD TQFP/80 MICROCHIP MCU

185,55 TL
*17,29 TL den başlayan taksitlerle!
Kategori
Elektrik & Elektronik , Entegre Devreler
Stok Kodu
5R8UFDZU3J
Stoktan Teslim
Kampanyalı Ürün
ÜRÜN AÇIKLAMASI
ÜRÜN YORUMLARI
Teknik Doküman
ÜRÜN AÇIKLAMASI
e PIC18F87K22-I/PT is a 128kB high-performance enhanced Flash Microcontroller Unit (MCU) with 12-bit A/D and nanoWatt XLP technology. This microcontroller is well suited for power-constrained and battery-powered applications. The Charge Time Measurement Unit (CTMU) simplifies the design of capacitive touch applications and can enable other applications requiring precise time or temperature measurement. Robust features such as wide operating voltage and temperature ranges and high endurance flash program and data EEPROM make this an excellent microcontroller for rugged automotive and industrial applications. Additional peripherals, such as a 12-bit A/D converter, 3 comparators H/W RTCC, 10 total CCP/ECCP channels, 11 total timers and 69 general purpose I/O. The consistent pinout scheme, used throughout the entire family, also aids in migrating to the next larger device.


: PIC18
: 64MHz
: 128KB
: 80Pins
: TQFP
: 69I/O's
: EUSART, I2C, SPI
: 4KB
: 24Channels
: 12Bit
: 1.8V
: 5.5V
: -40°C
: 85°C
: Surface Mount
: PIC18
: PIC18F K2x
: -
: MSL 3 - 168 hours
ÜRÜN YORUMLARI
Bu ürüne ilk yorumu siz yapın!
Yorum Yaz
Teknik Doküman
Detaylı bilgi için datasheet
  • Low-power - Ultra low-power wake-up, low input leakage currents and fast wake-up
  • CPU - Up to 16 MIPS performance and 8 x 8 single-cycle hardware multiplier
  • Peripherals - Charge time measurement unit for mTouch sensing and A/D converter
  • On-chip 3.3V regulator
  • Data EEPROM of 1024 bytes
  • 10000 Erase/write cycle flash program
  • 40-year Minimum flash retention
  • Self-programmable under software control
  • Priority levels for interrupts
  • Extended watchdog timer (WDT) - Programmable period from 4ms to 4194s (about 70 minutes)
  • In-Circuit Serial Programming™ (ICSP™) via two pins
  • In-Circuit Debug via two pins
